Wheelsets Race Face Atlas Boost Tubeless Wheels 27.5″

Race Face Atlas Boost Tubeless Wheels 27.5″
Back to the roots of Race Face. Expanding on our game-changing Atlas line and developed in conjunction with Devinci Global
Racing, these wheels are built for the toughest DH tracks on earth. Bring rock gardens to their knees, make step downs bow
down, laugh in the face of 20 park laps a day. Downhill and freeride strength rim built on the incredible 3° engagement
Vault hub. Pack these wheels on your next DH trip and you’ll be smiling all the way down the track.

FEATURES
Large oversized flange for improved bracing angle and larger bearings
Hub and bearing system designed and validated for longevity, smoothness, low drag and zero play
30mm Internal Width
Tubeless Ready (tape and valves installed)
4.5mm Offset improves spoke balance and wheel stiffness
6069 Aluminum construction
Dent and flat resistant bead design
6 double tooth pawls (3 engage at a time)
120 points of engagement (3 degrees)
One length spoke used throughout wheelset (F&R)

SPECIFICATIONS
Intended Use: DH/FR
Wheel Diameter/ISO 27.5” / 584
Axle Type Front 20mmx110 / Rear 12×150/157
Hub Spacing F 110mm Boost / R 150/157 Boost
Freehub Body Shimano HG
Wheel Tire Type Tubeless Ready
Wheel-Brake Comp. Disc IS 6-bolt
Rim Material Aluminum
Rim Construction Double wall
Rim Internal Width 30mm
Rim inner width range 28-34.9mm
Height: 22mm
Rim Color Black
Hub Model Vault
Wheel Weight 1950g Set
Spoke Type 2.0/1.8 Straight Pull 3x Pattern
Spoke Hole: 28H
Valve Presta
Rim Model Atlas
Axles not Included
Sold Individually

MPN#

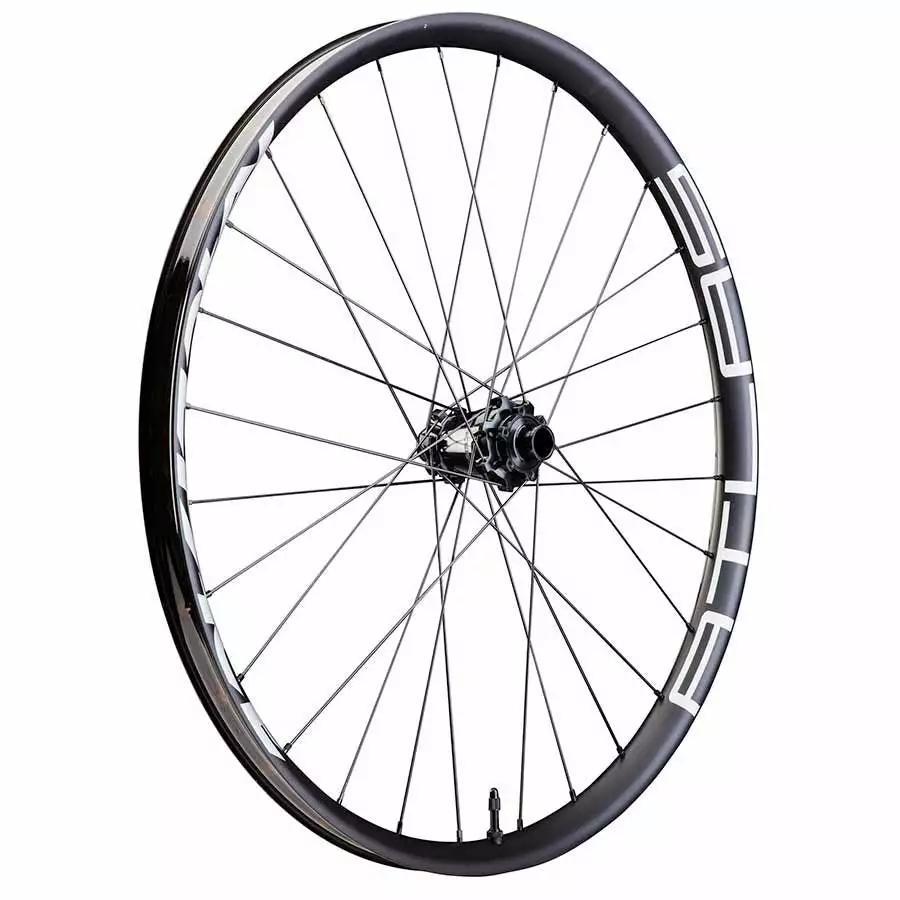

Front 20×110 • WH18A3027.5F
UPC: 821973317380

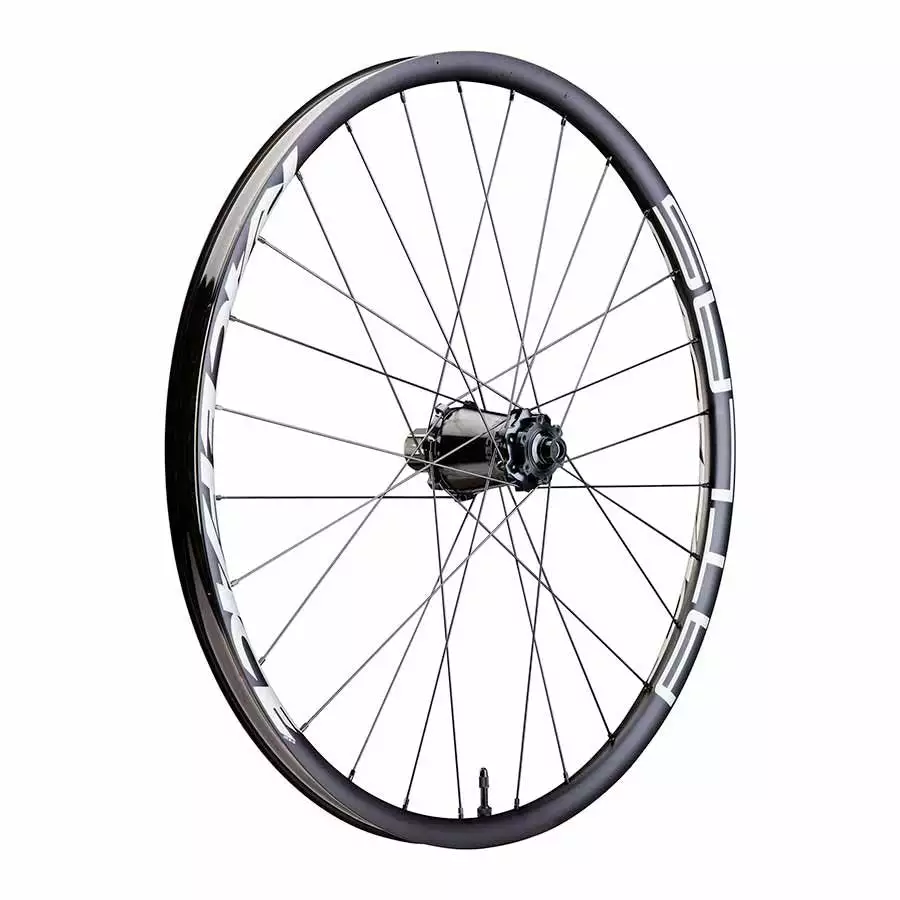

Rear 12×150/157• WH18A3027.5R
UPC: 821973317397

Rear 12×150/157 Sram XD • WH18A30XD27.5R
UPC: 821973317403
