Shimano SM CD800 Chain Guide For XTR M9100 / M9120 Chains / Chain Guides

Shimano SM CD800 Chain Guide For XTR M9100 / M9120 Chains / Chain Guides

Name: Our Functional and stylish Shimano SM CD800 Chain Guide For XTR M9100 / M9120 Chains / Chain Guides is in short supply in spring 2023
SKU: chains-chain-guides-1412567498845
Price: 36.20 USD
Availability: InStock

$36.20

Choose

Clear

SKU: chains-chain-guides-1412567498845 Categories: Chains / Chain Guides, New Arrivals, Parts, Special Offers Tags: 12 Speed, Chain, Direct, E-Type, Guides

High quality products, hassle-free returns.
Safe and Secure Shopping
The quality you expect, the service you deserve.
Safe Shopping Guaranteed

The SM-CD800 chain guide is compatible with XTR FC-M9100 and FC-M9120 1x cranksets. The adequate chain line measures 52 mm.

The chain device which is available in 3 versions ensures a stable drivetrain thanks to an optimized plate design. The adjustment of the extremely light component is very simple by screw.

SPECIFICATIONS
Ensure stable drivetrain
Optimized plate design for new generation chain
Easy adjustment by screw
Lightweight
Assumed Rear Sprocket Teeth: 10-45T, 10-51T
Back Plate Material: resin
Chainline: 52mm
Top Gear Teeth: 30-38T
Color: Black

Mounts Type Available

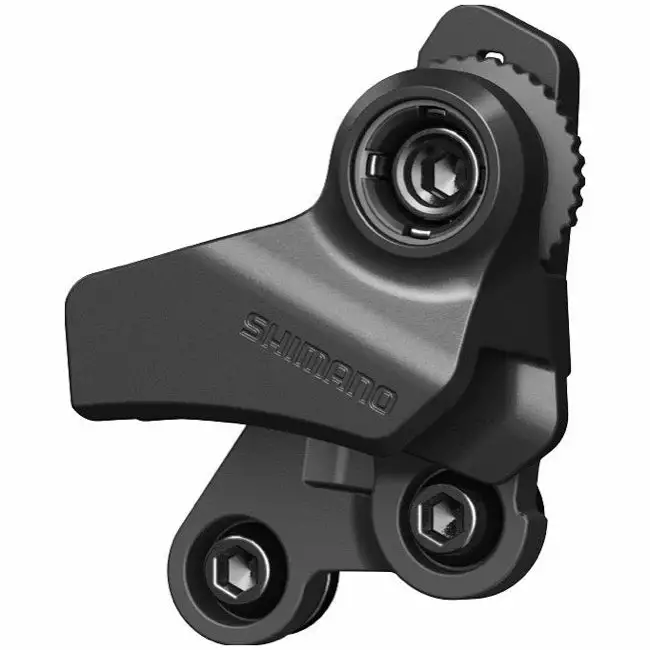

SM-CD800-D:
For the installation on the Direct Mount boss for the front derailleur on the frame.

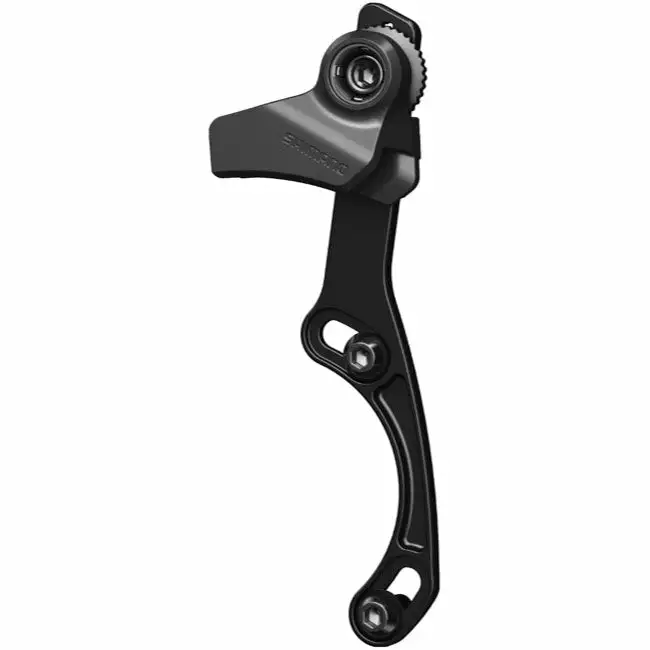

SM-CD800-I:
For the installation on the ISCG 05 mounting boss of the frame.

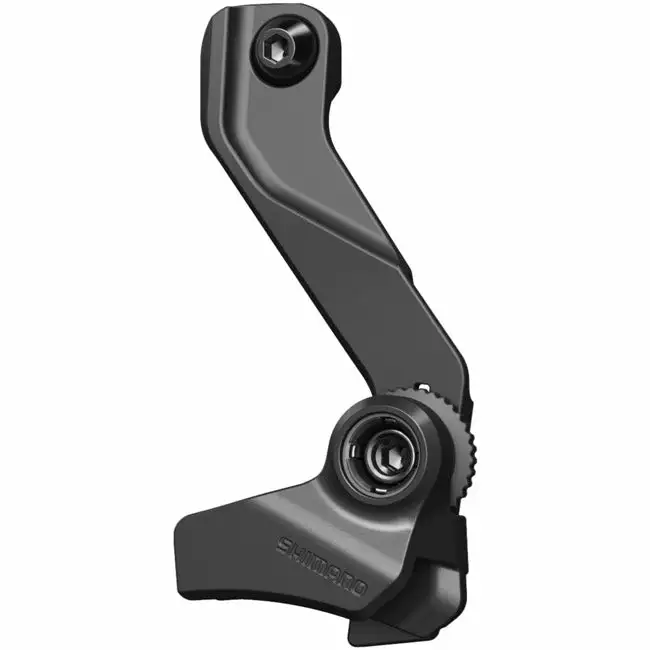

SM-CD800-E:
For the installation on the E-Type mounting boss for the front derailleur on the frame or above the plate that is tightened together with the bottom bracket.

Note: The installation of SM-CD800-D and SM-CD800-I needs to be done with the chainring and chain fully assembled.

Shimano Item #
SM-CD800D
SM-CD800I
SM-CD800E

Original Genuine Shimano parts guarantees that all components work perfectly for optimum performance and maximum safety and Longevity.
