Manitou Machete 27.5″+/29″ Fork 15×110 Boost Forks / Accessories

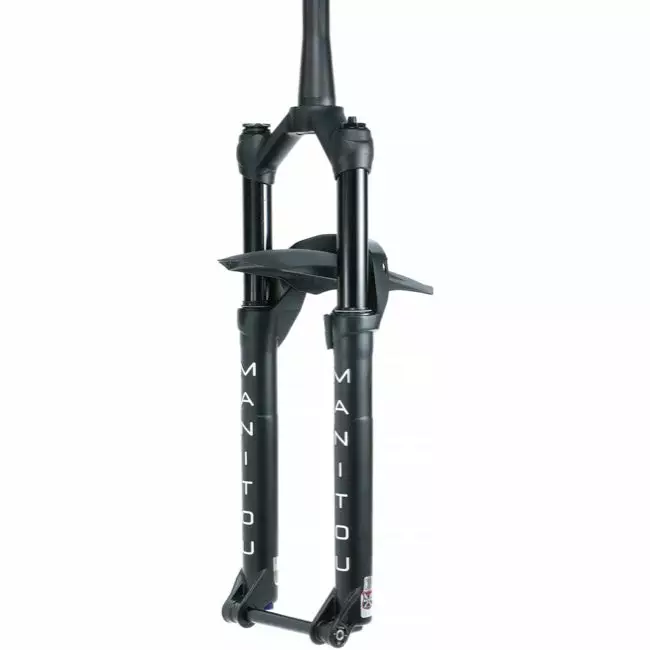

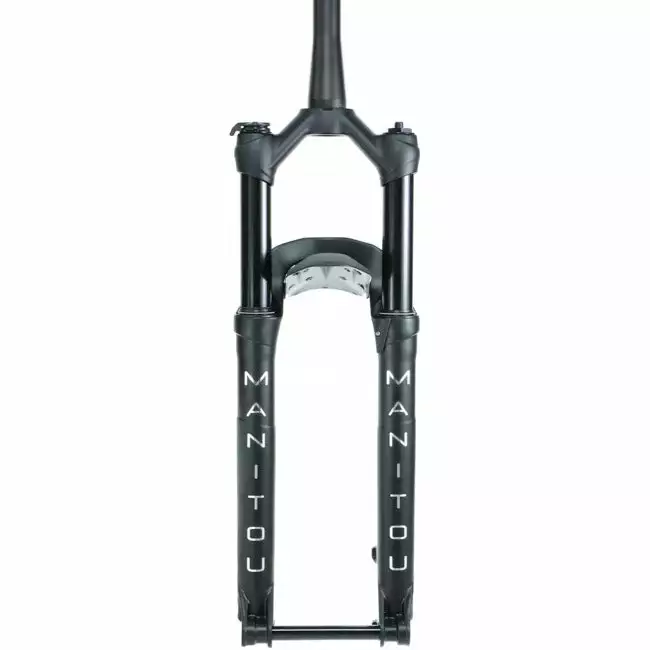

Manitou Machete 27.5″+/29″ Fork 15×110 Boost
The Machete is purpose-built for slicing trails, with Kwik Toggle compression damping inspired by our renowned Absolute+ technology. Kwik Toggle acheives on/off lockout simplicity in a lightweight, practical package.

FEATURES
TS air spring with 32mm black anodized stanchions
Kwik-Toggle damper with lockout, adjustable rebound and high speed compression
Easily upgradable to remote using MILO upgrade kit (sold separately)
Disc brake only (74mm/6″ post-mount)

SPECIFICATIONS
Wheel Size: 27.5+/29″
Weight: 1885g
Offset: 51mm
Ride Height: 485-525mm
Travel: 80-120mm Internally adjustable in 10mm increments
Spring: TS Air
Compression Damping: Kwik Toggle
Rebound Damping: in-leg adjustable TPC
Adjustments: Air, Rebound, Lockout
Steerer: 1.5″ Tapered
Crown: Forged Aluminum, Hollow Bore Matte Black
Leg Diameter: 32mm
Leg Material: 6000- Series Straight Wall Aluminum
Brake: Post Mount 160mm (203mm Max)
Axle: 15mm x110mm Hexlock
Max Tire Size: 77mm (27.5+), 68mm (29)

MPN#
120mm • 191-36975-A004
Upc: 847863026187
