Forks / Accessories Cane Creek Helm Coil Fork 29″

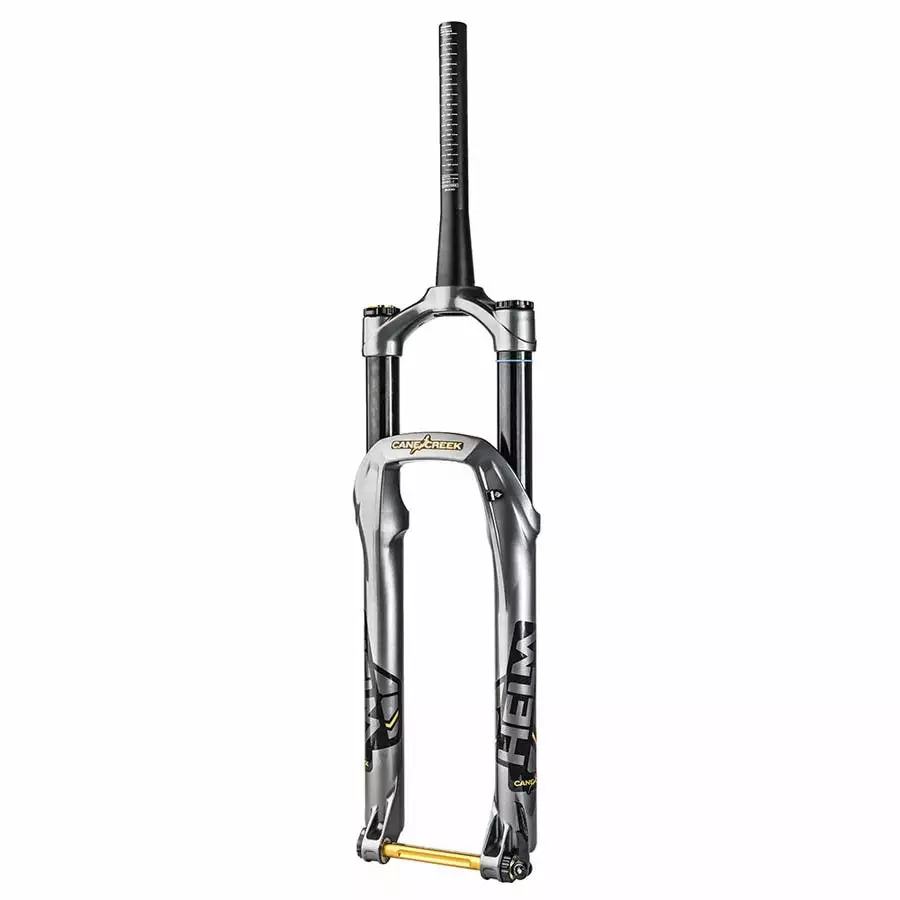

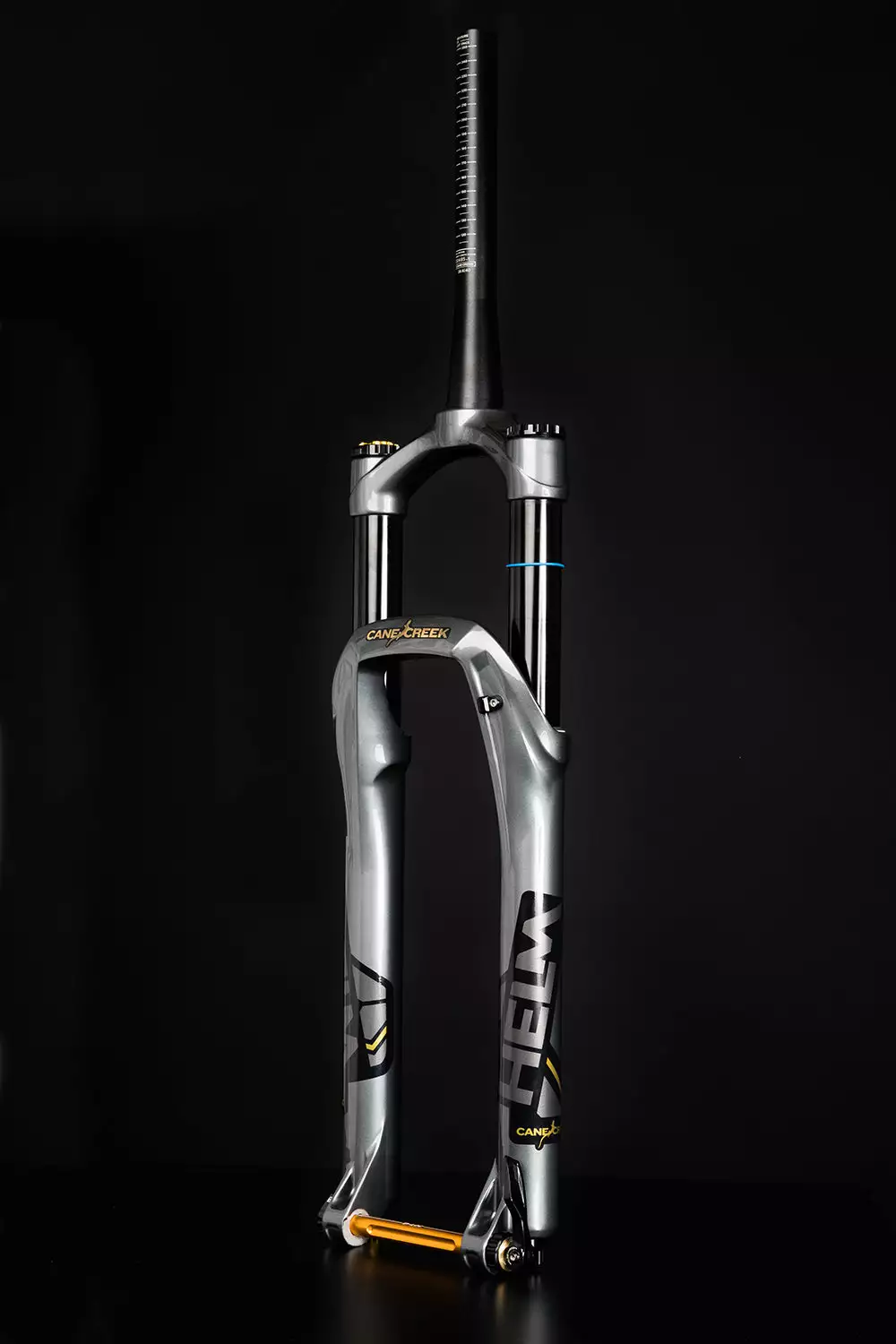

Cane Creek Helm Coil Fork 29″
Helm Coil is optimized for 130mm to 160mm of travel, with the ability to be internally adjusted by changing the location of the spring perch (coil piston) on the travel-indexed compression rod. This procedure requires no additional parts.

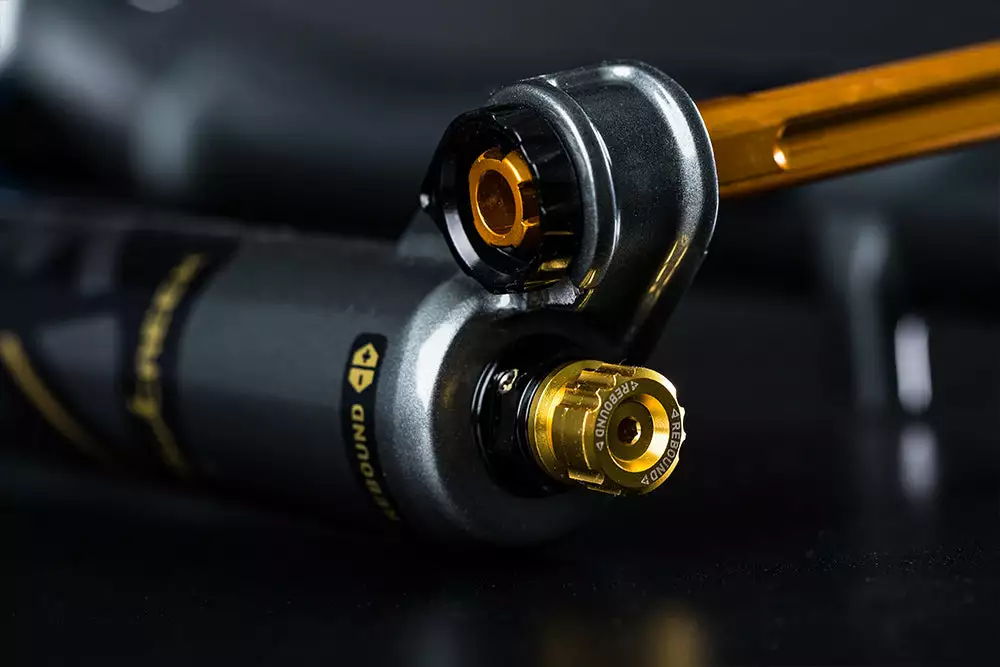

High speed compression, Low speed compression Low speed rebound, Indexed travel adjust system, Spring pre-load adjust

SPECIFICATIONS

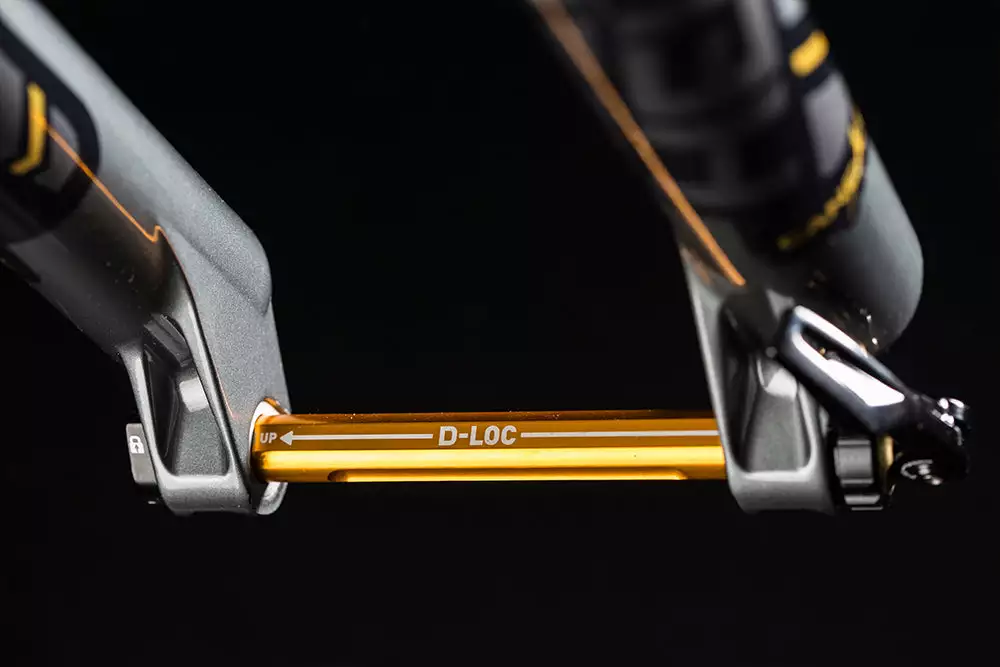

Axle/Hub spacing 15x110mm TA Boost
Rake 51mm
Color Grey
Spring Type Coil
Steerer Tube 1-1/8”-1.5” (Tapered)
Travel 150mm / 160mm
Wheel Diameter 29”
Brake Type Disc
Damping Adjustments High Speed Compression, Low Speed Compression, Low Speed Rebound
Crown Material Aluminum
Maximum Tire Width 64mm
Spring Adjustments Air pressure, 8 position volume reduction
Steerer Tube Material Aluminum
Lower Tubes Material Magnesium
Stanchions Material Aluminum
Stanchions Diameter 35mm
Fork Weight 2340g

MPN
150mm Tapered 15x110mm Thru-Axle 51mm
VENDOR ITEM # BAG0484
UPC: 840226148687

160mm Tapered 15x110mm Thru-Axle 51mm
VENDOR ITEM # BAG0485
UPC: 840226148694
