Forks / Accessories Cane Creek Helm Air Fork 27.5″

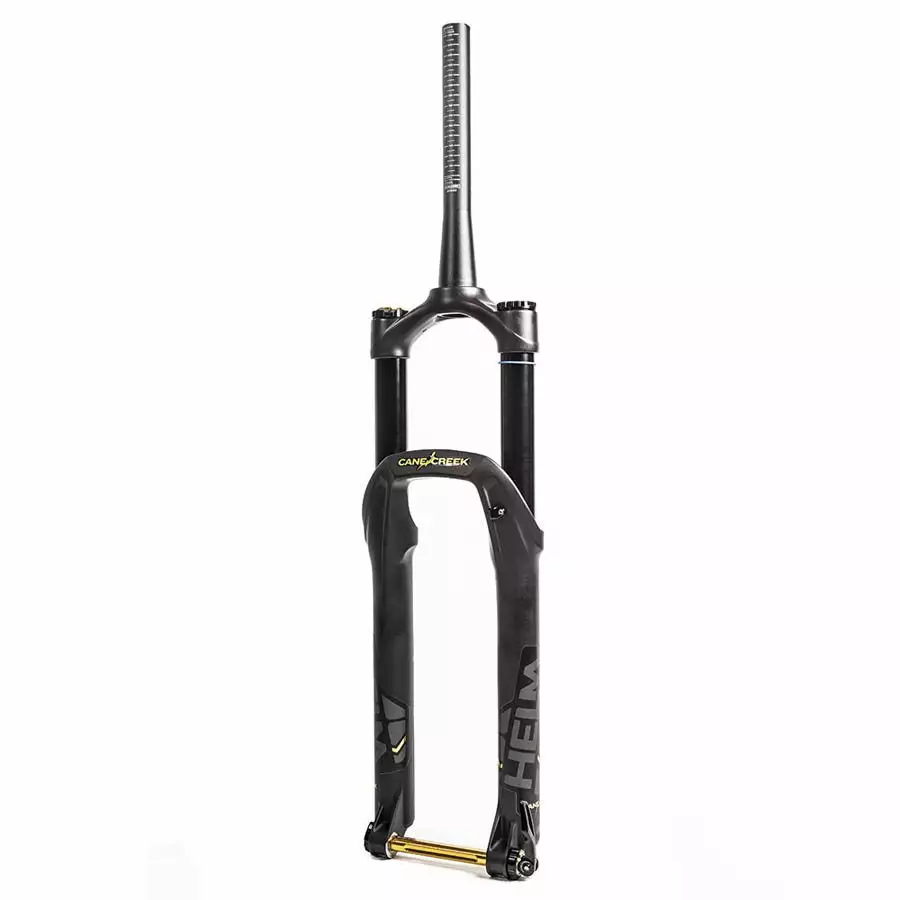

Cane Creek Helm Air Fork 27.5″
Born in the mountains of Western North Carolina, Helm is designed to conquer aggressive trail, enduro racing, and anything in between.
Helm can be tuned for all types of terrain and riding styles and gives the rider ultimate control of their suspension set-up.
7-way adjustable: High speed compression, Low speed compression, Low speed rebound, Air volume adjust (8-position Internal indexed system), Independent positive air spring, Independent negative air spring, Indexed travel adjust system

SPECIFICATIONS
Axle/Hub spacing 15x110mm TA Boost
Rake 44mm
Color Black
Spring Type Air
Steerer Tube 1-1/8”-1.5” (Tapered)
Travel 150mm / 160mm / 170mm
Wheel Diameter 27.5”
Brake Type Disc
Damping Adjustments High Speed Compression, Low Speed Compression, Low Speed Rebound
Crown Material Aluminum
Maximum Tire Width 65mm
Spring Adjustments Air pressure, 8 position volume reduction
Steerer Tube Material Aluminum
Lower Tubes Material Magnesium
Stanchions Material Aluminum
Stanchions Diameter 35mm
Fork Weight 2070g

150mm VENDOR ITEM # BAG0394K
UPC: 840226145853

160mm VENDOR ITEM # BAG0345K
UPC: 840226141619

170mm VENDOR ITEM # BAG0393K
UPC: 840226145877
